Zhrnutie

The CD40106 is a versatile integrated circuit (IC) manufactured by Texas Instruments, featuring six Schmitt-trigger inverters designed to improve noise immunity and offer superior performance in digital circuits. It is categorized under the SOIC-14 case package and operates over a wide voltage range from 3V to 18V, making it suitable for various applications. This IC is notable for its ability to interface effectively between analog and digital circuits, thanks to the enhanced characteristics of its Schmitt-trigger inverters, which differ from standard NOT gates by having hysteresis in their transfer characteristics. This allows the CD40106 to provide stable digital outputs even in the presence of noisy or slowly varying input signals. The electrical characteristics of the CD40106 are impressive, with each of the six inverters capable of an input current of up to 6.8mA. The threshold voltages exhibit a close match of approximately 100mV at a 15V DC supply voltage, ensuring consistent performance across all six inverters. These features make the CD40106 ideal for applications requiring noise immunity and stable signal output, such as switch debouncing, waveform shaping, and signal conditioning. One of the primary advantages of the CD40106 is its inherent noise rejection capabilities, achieved through the hysteresis in the input thresholds, which prevents small fluctuations in the input signal from causing false triggering of the output state. Additionally, the device operates in a bistable manner, with two stable output states (HIGH and LOW), changing only when the input crosses specific threshold voltages. This bistability is crucial for reliable operation in noisy environments, making the CD40106 a popular choice for applications in communication systems, sensor interfacing, and timing circuits. The CD40106 has been widely adopted in various electronic applications due to its unique features and the advantages of its Schmitt-trigger inverters. It is encapsulated in a 14-pin SOIC package, providing flexibility in circuit design. Despite initial hindrances due to the slower speeds compared to TTL-based designs, advances in fabrication methods have allowed the CD40106 and the broader 4000-series to perform on par with contemporary TTL, ensuring their continued relevance and utility in modern digital circuits.

Technické špecifikácie

The CD40106BM is a logic gate IC manufactured by Texas Instruments (TI), categorized under the SOIC-14 case package

. This IC features six Schmitt-Trigger inverters, each designed to improve noise immunity and offer superior performance in digital circuits. The device operates over a wide voltage range, from 3V to 18V, making it versatile for various applications.

Elektrické charakteristiky

Each of the six Schmitt-Trigger inverters in the CD40106BM has an input current capability of up to 6.8mA

. The threshold voltages for these gates exhibit a mismatch of approximately 100mV at a supply voltage of 15V DC, translating to about ±0.3% of the supply value. This close matching ensures consistent performance across all six inverters on the same IC die.

Funkčný opis

The CD40106 is an integrated circuit that features six Schmitt-trigger inverters. Each Schmitt inverter within the IC functions similarly to a standard NOT gate but with enhanced characteristics suitable for interfacing between analog and digital circuits. When a logic 1 is input, the output becomes logic 0, and vice versa. However, the Schmitt inverter differs from a simple NOT gate by having hysteresis in its transfer characteristics, meaning the input voltage thresholds for transitioning from HIGH to LOW and from LOW to HIGH are different

.

Schmitt Inverter Characteristics

The Schmitt inverter on the CD40106 exhibits a clean and definitive switching behavior, avoiding any intermediate states between logic levels. This makes it ideal for applications requiring noise immunity and stable signal output

. When the input voltage (Vin) rises to approximately 3 volts, the output voltage (Vout) transitions from HIGH to LOW. Conversely, when Vin falls to approximately 2 volts, Vout transitions from LOW to HIGH. This hysteresis helps to filter out noise and provides a stable digital output even with slowly changing or noisy input signals.

Noise Rejection and Bistable Operation

One of the primary advantages of using Schmitt-trigger inverters, like those found in the CD40106, is their inherent noise rejection capabilities. The hysteresis in the input thresholds ensures that small fluctuations in the input signal do not result in false triggering of the output state, which is crucial for reliable operation in noisy environments

. Additionally, the Schmitt inverter operates in a bistable manner, meaning it has two stable output states (HIGH and LOW). The output state changes only when the input crosses specific threshold voltages, ensuring stable operation and preventing unwanted oscillations.

Applications and Benefits

The Schmitt-trigger inverters in the CD40106 are widely used in various applications, including switch debouncing, waveform shaping, and signal conditioning

. In switch debouncing, the hysteresis characteristic ensures that only a single transition occurs for each actuation of the switch, eliminating the effects of contact bounce. This IC can also be used in oscillator circuits, where the clean switching behavior helps generate stable oscillations.

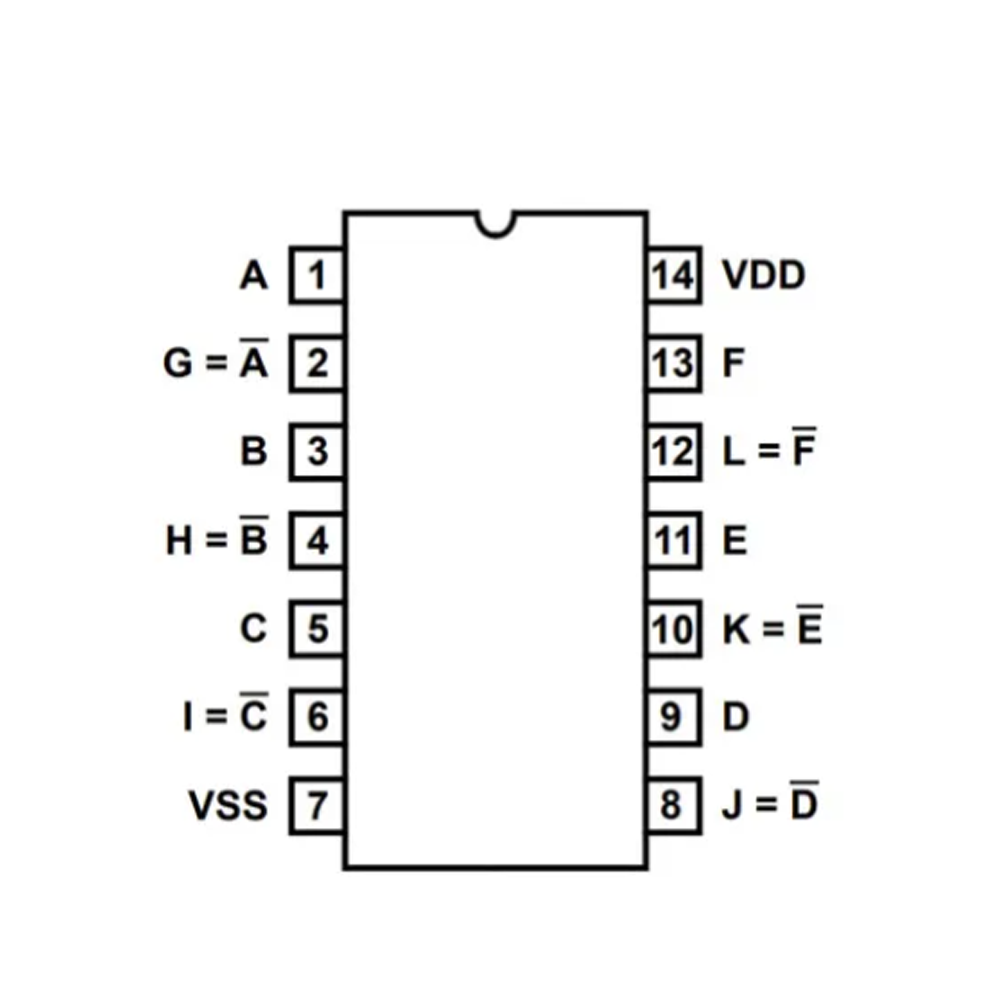

Package and Pinout

The CD40106BM is encapsulated in a 14-pin SOIC package, making it suitable for surface-mount applications. The pin configuration includes the power supply pins (Vdd and Vss) and the input/output pins for each of the six inverters

. Each inverter can be independently utilized, offering flexibility in circuit design. The device’s compact size and robust electrical characteristics make it a popular choice for designers needing reliable logic-level conversions and signal conditioning in their digital circuits.

Aplikácie

The CD40106BM IC is widely used in various electronic applications due to its unique features and the advantages of its Schmitt-trigger inverters.

Kondicionovanie signálu

The Schmitt trigger is often employed to reshape and condition analog signals before further processing. Its ability to convert analog inputs to digital outputs simplifies subsequent digital logic operations

. This makes the CD40106BM a useful component in analog-to-digital conversion and other signal processing tasks.

Oscilátory

The CD40106BM is also used in oscillator circuits. By incorporating a Schmitt trigger into an oscillator circuit, the hysteresis property helps to control the frequency and stability of the generated waveform. This is particularly useful for generating continuous periodic waveforms such as sine waves, square waves, or triangle waves

.

Noise Elimination

One of the key uses of the CD40106BM is in noise elimination. The hysteresis loop in the Schmitt trigger helps suppress noise and signal fluctuations, ensuring a clean digital output. This is particularly valuable in applications where noise immunity is essential, such as communication systems and sensor interfacing

.

Generovanie štvorcových vĺn

The ability of the Schmitt trigger to generate square waves is another significant application. By feeding an input signal to the CD40106BM, its hysteresis characteristics ensure that the output switches between two voltage levels when the input crosses the threshold voltages. This makes it useful in timing circuits, which control the synchronization of various events or processes in electronic systems

.

Switch Debouncing

Switch debouncing is another critical application of the CD40106BM. It helps in reducing the multiple transitions of a switch by providing stable signal transitions upon switch pressing or releasing. This ensures that only a single transition is registered, which is important in digital systems to avoid erroneous counts or operations

.

Tvarovanie impulzov

Additionally, the CD40106BM can be employed in pulse shaping applications. Pulse shaping involves modifying the shape or characteristics of input pulses to achieve desired output pulses. The hysteresis property of a Schmitt trigger allows it to clean up noisy or distorted input signals by reshaping them into cleaner square wave pulses.

Úvahy o dizajne

The 4000 series, including the CD40106, facilitates simpler circuit design through relatively low power consumption, a wide range of supply voltages, and significantly increased load-driving capability (fanout) compared to TTL. This makes the series ideal for use in prototyping LSI designs

. While TTL ICs are similarly modular, they usually lack the symmetrical drive strength of CMOS and may require more consideration of the loads applied on their outputs. Buffered models within the series, such as those used for I/O-devices like octal latches and three-state drivers, can drive higher electrical current but have a slightly higher risk of introducing ringing unless correctly damped or terminated. Wide adoption of the 4000 series was initially hindered by the comparatively lower speeds of the designs compared to TTL-based designs. However, these speed limitations were eventually overcome with newer fabrication methods, such as self-aligned gates of polysilicon instead of metal, allowing these CMOS variants to perform on par with contemporary TTL. The series was extended in the late 1970s and 1980s with new models given 45xx and 45xxx designations, but these are usually still regarded by engineers as part of the 4000 series. In the 1990s, some manufacturers, such as Texas Instruments, ported the 4000 series to newer HCMOS-based designs to provide greater speeds. When designing circuits with the CD40106, it is crucial to adhere to the recommended operating conditions to ensure the safety and optimal performance of the device. The absolute maximum ratings indicate the limits beyond which the device’s safety cannot be guaranteed. For example, the DC supply voltage (VDD) should be within the range of 3 to 15 VDC, and the input voltage (VIN) should be from 0 to VDD VDC. Operating temperature ranges vary depending on the model, with the CD40106BM ranging from -55°C to +125°C and the CD40106BC from -40°C to +85°C. In terms of power supply, it is important to use a stable power source and connect all unused inputs to either GND or VCC to avoid unnecessary current consumption. The CD40106 can be used with a variety of power supply voltages, and the exact range should be confirmed from the datasheet of the specific version being used. Moreover, designers should be aware that typical bench power supplies, like the E3648A, are single quadrant output, meaning they can only source current for positive output voltage. The settling time for a new voltage set-point lower than the previous one can be slow due to the reliance on the load and internal pull-down resistors to discharge the supply’s output bypass capacitors.

Porovnanie s inými integrovanými obvodmi

The CD40106, part of the 4000-series ICs, offers significant advantages and specific use cases that distinguish it from other integrated circuits (ICs). This section examines its comparison with several other ICs, particularly those within the same logic family and its alternatives.

7400 Series Comparison

The 4000-series ICs, including the CD40106, serve as an alternative to the widely used 7400 series. While both series offer similar functionalities such as logic gates and counters, they differ in their construction and operational characteristics. The 7400 series is based on transistor-transistor logic (TTL), whereas the 4000-series utilizes complementary metal-oxide-semiconductor (CMOS) technology. This difference in technology results in varying electrical characteristics, with the 4000-series typically providing lower power consumption but slower speeds compared to the TTL-based 7400 series

.

Alternative Schmitt Trigger ICs

For applications specifically requiring Schmitt triggers, the CD40106 can be compared with several alternatives:

• 74C14: This IC is pin-compatible with the CD40106 and supports higher output currents. It can serve as a direct replacement in circuits requiring more robust current handling capabilities.
• 74xx14 Variants (e.g., 74HC14, 74LS14): These chips offer the same functionality as the CD40106 but typically have lower voltage ratings. They are part of the 74xx series and are suited for applications where lower operating voltages are acceptable.

Advantages Over Simple NOT Gates

The CD40106, as a Schmitt trigger inverter, offers advantages over simple NOT gates due to its hysteresis characteristics. Hysteresis provides two distinct threshold voltages, ensuring that the output transitions cleanly between logic states, which is crucial for noise immunity and reducing the effects of input signal noise and switch debouncing

. This feature makes the CD40106 particularly valuable in applications requiring stable and reliable signal transitions.

Disadvantages in High-Precision Applications

However, the CD40106 is not without its limitations. Its dependence on input voltage levels and threshold can be a drawback in high-precision applications, such as analog-to-digital converters, where precise voltage levels are critical

. In such cases, alternative ICs with tighter threshold specifications and better precision might be more appropriate.

Practical Examples

The CD40106 is a versatile IC containing six Schmitt-trigger inverters, each of which can be employed in various practical applications. One of the most common uses of the CD40106 is in constructing oscillators and waveform generators.

Oscillator Circuits

A practical application of the CD40106 is creating a simple relaxation oscillator circuit. The oscillator can generate a stable frequency output and is often used in timing applications. For instance, by connecting a resistor and capacitor to one of the inverters, you can set up an oscillator that blinks an LED at a specific rate. This is achieved by connecting the power supply to the VDD and GND pins of the chip and configuring the remaining components accordingly

. The oscillator’s frequency is determined by the RC time constant, which can be calculated using the following formula: $$ f_{RC} = \dfrac{1}{RC \log \left( \dfrac{(V_{dd}-V_N)V_P}{(V_{dd}-V_P)V_N} \right)}$$ This setup provides a way to construct a reliable oscillator with a stable output frequency, which is crucial for many timing-related applications.

Blinking LED Circuit

Another practical example is using the CD40106 to build a blinking LED circuit. This can be done with a few simple components: a 9V battery, a 100 µF capacitor (C1), two 10 kΩ resistors (R1 and R2), and an LED. The Schmitt-trigger inverter ensures that the LED blinks at a consistent rate, typically around one blink per second

. This circuit demonstrates the utility of the CD40106 in generating periodic signals and controlling visual indicators.

Odolnosť voči hluku

The CD40106 is also valuable in applications where noise immunity is critical. For instance, when running a data line that may have picked up noise, the Schmitt-trigger inverters help ensure that logic output levels only change in response to actual data changes, not spurious noise. This makes the CD40106 ideal for line reception tasks, ensuring reliable signal processing in noisy environments

. These examples illustrate the versatility and practical utility of the CD40106 IC in various electronic applications, from simple LED blinkers to complex noise-immune data lines.

Informácie o výrobcovi

The CD40106 is a widely used CMOS IC that incorporates six Schmitt-Trigger inverters. This device is manufactured by several prominent semiconductor companies, each offering it in various package types and under different part numbers.

Current Manufacturers

Nexperia

Nexperia, a spinoff from NXP, continues to produce the CD40106 and its variants. The company focuses on delivering high-performance semiconductors for a range of applications.

ON Semiconductor

ON Semiconductor, which emerged from Motorola Semiconductor Components Group and later acquired Fairchild Semiconductor, is another key producer of the CD40106. Their versions are available in different package sizes to cater to diverse application needs.

Texas Instruments

Texas Instruments, which acquired National Semiconductor, also manufactures the CD40106. The device is available in multiple packaging options, including ceramic (J) and standard (D, N, NS, PW) packages, with operational temperature ratings from –55°C to +125°C

.

Former Manufacturers

Hitachi

Hitachi was among the early producers of the CD40106 but has since ceased manufacturing this series.

NXP

Before the spin-off that resulted in Nexperia, NXP (formerly Philips Semiconductors) was a significant player in the production of the CD40106.

RCA

RCA first introduced the 4000-series family in 1968, including the CD40106. Although RCA is now defunct, its early contributions were pivotal in popularizing this series

.

Spoločnosť Renesas Electronics

Renesas Electronics, which acquired Intersil, also produced versions of the CD40106.

ST Microelectronics

ST Microelectronics had a range of 4000-series ICs, including the CD40106, particularly for high-reliability and space applications

.

Toshiba Semiconductor

Toshiba Semiconductor was another major manufacturer that contributed to the widespread availability of the CD40106.

VEB Kombinat Mikroelektronik and Tesla Piešťany, s.p.

These manufacturers were active during the 1980s and 1990s in the former Soviet Union and Eastern Bloc countries. Various smaller manufacturers in the former Soviet Union also produced the CD40106, including companies like Angstrem, Mikron Group, and Integral, among others

. The diversity of manufacturers ensures that the CD40106 remains accessible and versatile for various applications, reflecting its long-standing importance in the realm of digital logic ICs.

Ďalšie zdroje

The CD40106 is a versatile integrated circuit (IC) that features six Schmitt-Trigger inverters, widely used in various electronic applications for their noise immunity and ability to provide clean digital signals from noisy or slowly varying input signals.

Datasheets

For more technical information, datasheets from various manufacturers provide detailed specifications, typical application circuits, and performance characteristics of the CD40106 IC.

• Intersil: A datasheet for the CD40106 from Intersil can be downloaded in PDF format, offering a comprehensive overview of its electrical characteristics and pin configurations .
• National Semiconductor: After its acquisition by Texas Instruments, National Semiconductor’s datasheet for the CD40106 remains available, providing detailed information on the IC’s functional description and applications .
• Texas Instruments: Texas Instruments offers an updated datasheet for the CD40106, ensuring users have access to current data and typical use cases for this Schmitt-Trigger IC .

Educational Materials

For those looking to understand the practical applications and theoretical foundations of the CD40106 and Schmitt-Trigger circuits in general, several educational resources are available:

• Nuts and Volts Magazine: An article on understanding 4000-series digital logic ICs, including the CD40106, provides valuable insights into the design and application of these components in electronic circuits .
• Electronics Club: This website offers a thorough list of 4000-series ICs, along with explanations and example circuits that include the CD40106. It’s an excellent resource for hobbyists and professionals alike .
• Analog Devices: Information on 4000-series logic and analog circuitry is available, helping users to see how these digital logic components can be integrated into broader electronic systems .

Video Tutorials

Video tutorials can be an effective way to visualize how the CD40106 functions in practical scenarios:

• A recommended video compares a NOT gate and a Schmitt inverter, demonstrating how each works with a potential divider circuit. This visual aid can help users understand the differences and specific applications of these components . By exploring these resources, users can gain a deeper understanding of the CD40106 IC, its capabilities, and its various applications in electronic circuits.
